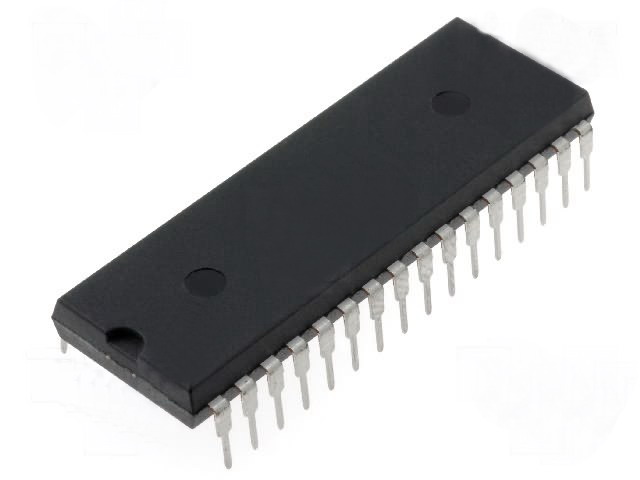

AT27C010-70U - OTP PROM, 1M, 5V, 27C010, PDIP32
Furnizor: ATMEL
RoHS : Da
Descriere
OTP PROM, 1M, 5V, 27C010, PDIP32
Memory Type:EPROM, OTP
Memory Size:1Mbit
Memory Configuration:128K x 8bit
Access Time:70ns
Supply Voltage Range:4.5V to 5.5V
Memory IC Case Style:PDIP
No. of Pins:32
Operating Temperature Range:-40C to +85c
Case Style:PDIP
Base Number:27
IC Generic Number:27C010
Interface Type:Parallel
Logic Function Number:27C010
Max Operating Temperature:85C
Max Supply Voltage:5.5V
Memory Size:1Mbit
Memory Voltage Vcc:5V
Min Supply Voltage:4.5V
Min Temperature Operating:-40C
Termination Type:Through Hole
Vcc Tolerance +:10%
