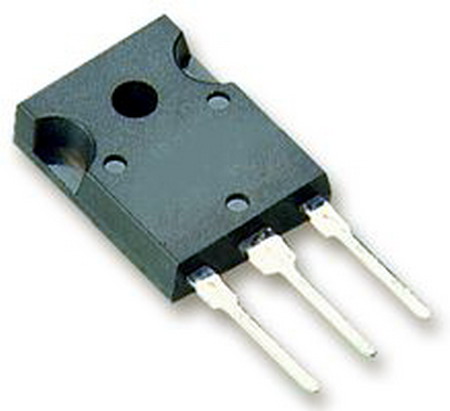

Componente electronice activeTranzistoareTranzistoare IGBTAOK40B60D1, IGBT, 80A, 600V, 278W, Alpha & Omega
Componente electronice activeTranzistoareTranzistoare IGBTAOK40B60D1, IGBT, 80A, 600V, 278W, Alpha & Omega
-
Part Status ActiveIGBT Type - WITH DIODEVoltage - Collector Emitter Breakdown (Max) 600VCurrent - Collector (Ic) (Max) 80ACurrent - Collector Pulsed (Icm) 140AVce(on) (Max) @ Vge, Ic 2.4V @ 15V, 40APower - Max 278WSwitching Energy 1.55mJ (on), 300µJ (off)Input Type StandardGate Charge 45nCTd (on/off) @ 25°C 29ns/74nsTest Condition 400V, 40A, 7.5 Ohm, 15VReverse Recovery Time (trr) 127nsOperating Temperature -55°C ~ 150°C (TJ)Mounting Type Through HolePackage / Case TO-247-3Supplier Device Package TO-247
