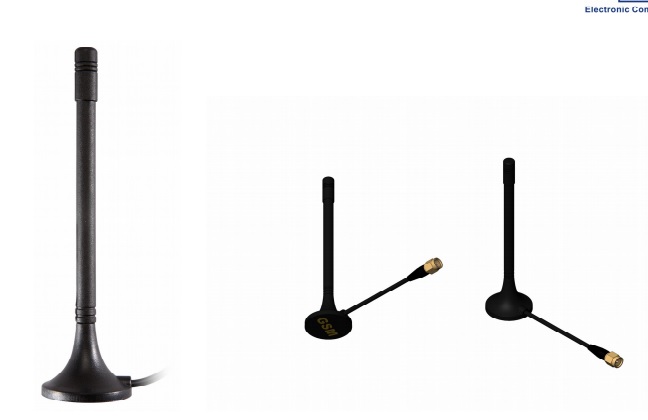

Module comunicare RF, Aurel, Bluetooth, GPS, GPRS, RFIDAntene pentru module GSM-GPSAntena GSM, 121mm, SMA tata, cablu 3m, magnet, GSM-ANT016
Module comunicare RF, Aurel, Bluetooth, GPS, GPRS, RFIDAntene pentru module GSM-GPSAntena GSM, 121mm, SMA tata, cablu 3m, magnet, GSM-ANT016
Producător SR Passives
Tip accesorii pentru module de comunicare antenă
Tip antenă GSM

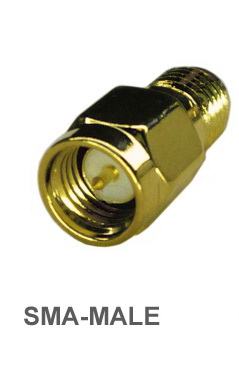

Tip conector SMA tata
Frecvenţă 1710...1990MHz, 1920MHz...2170MHz, 824...894MHz, 880...960MHz
Plus energetic antenă 2dBi
Temperatura de lucru -40...85°C

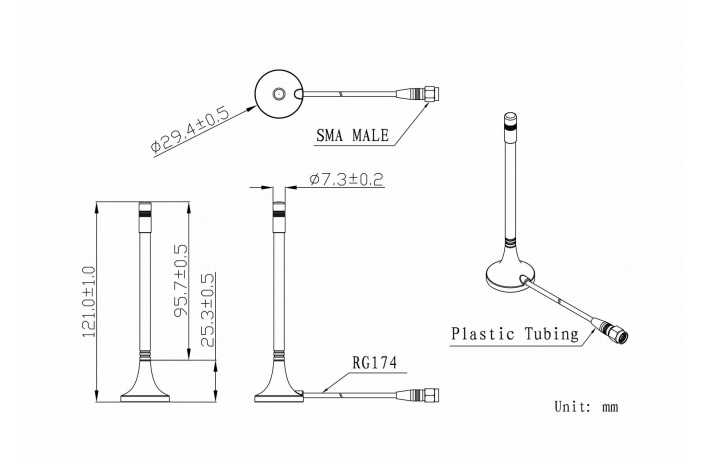

Lungime 121mm
Montare magnet
Diametru 29.4mm
Lungime cablu 3m
Serie cablu RG174
Antenna Frequency Range 824~960/1710~2170MHz
Polarization Linear
Gain 2.0dBi（Zenith）
V.S.W.R ＜2.0
Impendance 50Ω
Mechanical Cable RG174
Connector SMA or others
Mounting Method Magnet
Environmental Operating Temperature -40 ~+85 ℃ ℃
Vibration 10 to 55Hz with 1.5mm amplitude
2hours
Environmentally Friendly ROHS Compliant
