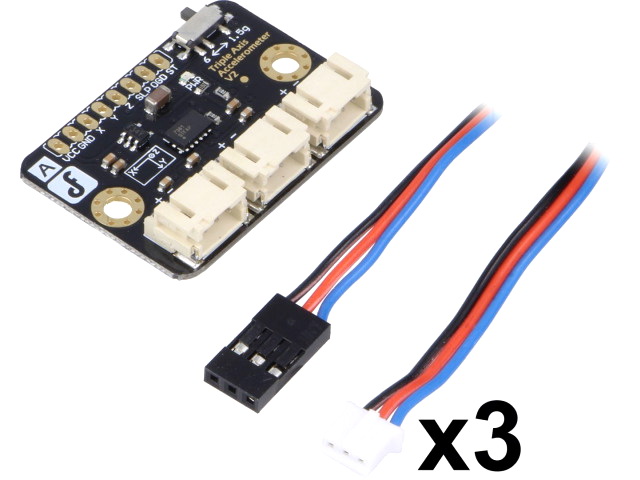

Triple axis accelerometer MMA7361 break board especially designed for Arduino which has 3 JST connector that can be easily plug into our IO/sensor expansion board. The MMA7361 is a very nice IMU sensor with easy analogue interface. The MMA7361 Arduino is a 3.3V part and outputs an analogue voltage for each of the three outputs. This voltage is in ratio to the measured acceleration and to the supply voltage (ratiometric). It has selectable sensitivity by dip switch. It is suitable for measuring the acceleration information for your robot or other devices, using for slope alarm or other kinds of alarm such as shock.



    3.3 to 8V voltage range

    Analogue output interface

    Low pass filter

    800mV/g high sensitivity

    Low power of 500µA at measurement mode and 3µA at standby

    Low power usage: 500µA (measurement mode), 3µA (standby)

    High sensitivity: 800mV/g (1.5g)

    Board size: 26x37mm
