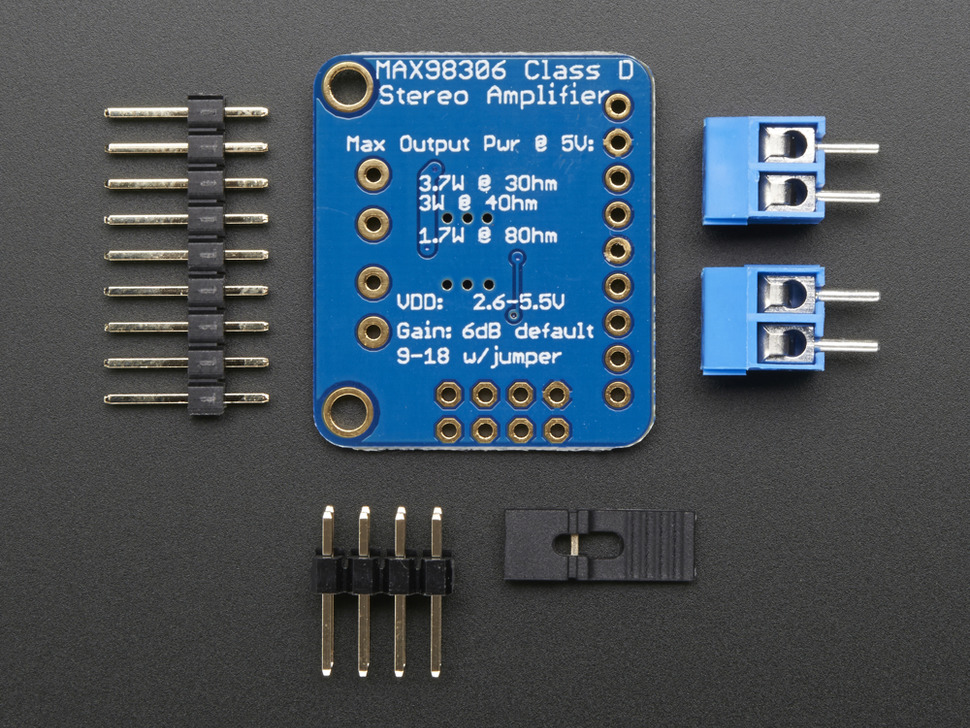

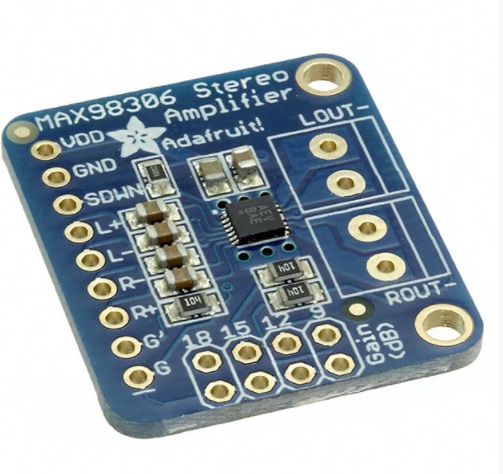

Amplificator audio, mono, clasa D, 3.7W, 8 ohmi, 28x24mm, MAX98306, 987, ADAFRUIT

Mareste

Amplificator audio, mono, clasa D, 3.7W, 8 ohmi, 28x24mm, MAX98306, 987, ADAFRUIT

Denumire Produs: 987, ADAFRUIT

COD: 86259

Preț orientativ: 99,86 RON

Descriere
Data Sheet
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Output Power: 3.7W at 3Ω, 10% THD, 1.7W at 8Ω, 10% THD, with 5V Supply

Passes EMI limit unfiltered with up to 12 inches (30 cm) of speaker cable

High 83dB PSRR at 217Hz

Spread-Spectrum Modulation and Active Emissions Limiting

Five pin-selectable gains: 6dB, 9dB, 12dB, 15dB and 18dB. Select with a jumper or by setting the G and G' breakout pins (see schematic for breakout board showing gain pin settings for details)

Excellent click-and-pop suppression

Thermal and short-circuit/over-current protection

Low current draw: 2mA quiescent and 10uA in shutdown mode
