Display TFT, afisor serial, inteligent, 0.9", 160x80 pixels, I2C, SPI, SoC, ESP8266, IoD-09TH

Afisor serial, inteligent, 0.9", 160x80 pixels, SoC, ESP8266, IoD-09TH

Manufacturer: 4D Systems

Product Category: TFT Displays & Accessories

Product: TFT LCD Displays

Diagonal: 0.9 inch

Display Resolution - Pixels: 80 x 160

Interface Type: I2C, SPI

Touch Panel: With Touch Panel

Backlighting: LED

Viewing Area - W x H: 20.16mm x 11.52mm

Module Size - W x H x T: 31.8mm x 16.4mm x 11.7mm

Operating Supply Voltage: 4V to 5.5V

Brand: 4D Systems

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 10 C

Operating Supply Current: max. 1 A

Unit Weight: 5 g

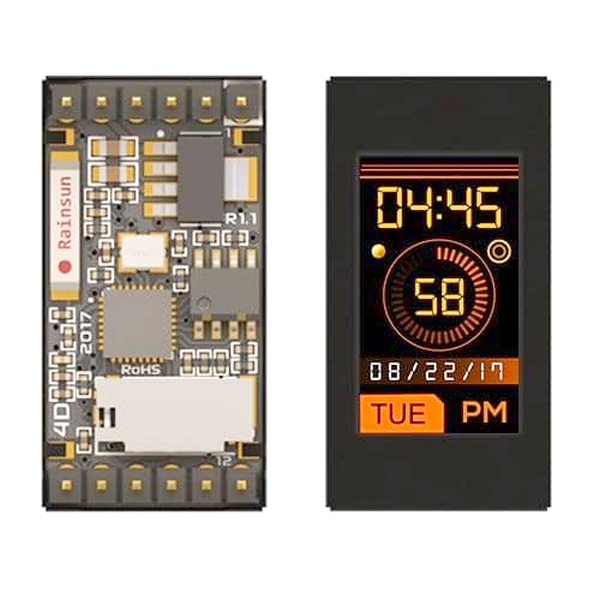

The IoD-09 (Internet of Displays) series is a range of miniature display modules designed and Manufactured by 4D Systems.
The IoD-09 modules feature a full colour 0.9” TFT LCD display.

They are powered by the WiFi enabled ESP8266, which offers an array of functionality and options for any Designer / Integrator / User.
The IoD-09 modules can be easily programmed using 4D Systems Workshop4 or the Arduino IDE installed with the ESP8266 core.

The feature rich 4D Systems GFX4dIoD09 library enables speedy development of applications by providing extensive primitive graphics functions, enhanced graphics via Workshop4, SD card access, and much more, all integrated into a single library.

The on-board SD card socket enables the use of FAT16 or FAT32 formatted cards for extensive storage capabilities.
