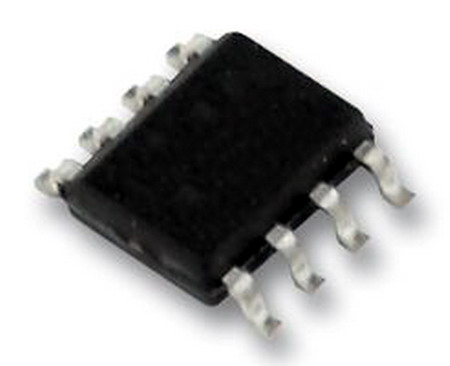

Componente electronice activeCircuite integrateCircuite integrate convertoare ADC, DACADS7822UB, SMD, 12bit, serial, ADC, SO8, TEXAS INSTRUMENTS
Furnizor:
TEXAS INSTRUMENTS
ADS7822UBG4
RoHS : Da
Descriere
IC, 12BIT ADC, SMD, SOIC8, 7822
Resolution (Bits):12bit
Sampling Rate:200kSPS
Input Channel Type:Pseudo Differential
Data Interface:Serial
Supply Voltage Range - Analogue:2.7V to 3.6V, 4.75V to 5.25V
Supply Current:320µA
Digital IC Case Style:SOIC
No. of Pins:8
Operating Temperature Range:-40C to +85C
No. of Channels:1
A/D / D/A Features:A/D
Base Number:7822
Conversion Time:12µs
IC Case Style:SOIC
Input Type:Pseudo-Differential
Linearity Error:1%
Linearity Error ADC / DAC +:1LSB
Linearity Error ADC / DAC -:1LSB
No. of Bits:12
Operating Temperature Max:85C
Operating Temperature Min:-40C
Package / Case:SOIC
Sample Rate:200kSPS
Sample Rate:200kSPS
Supply Voltage Max:5.25V
Supply Voltage Min:2.7V
Termination Type:SMD
