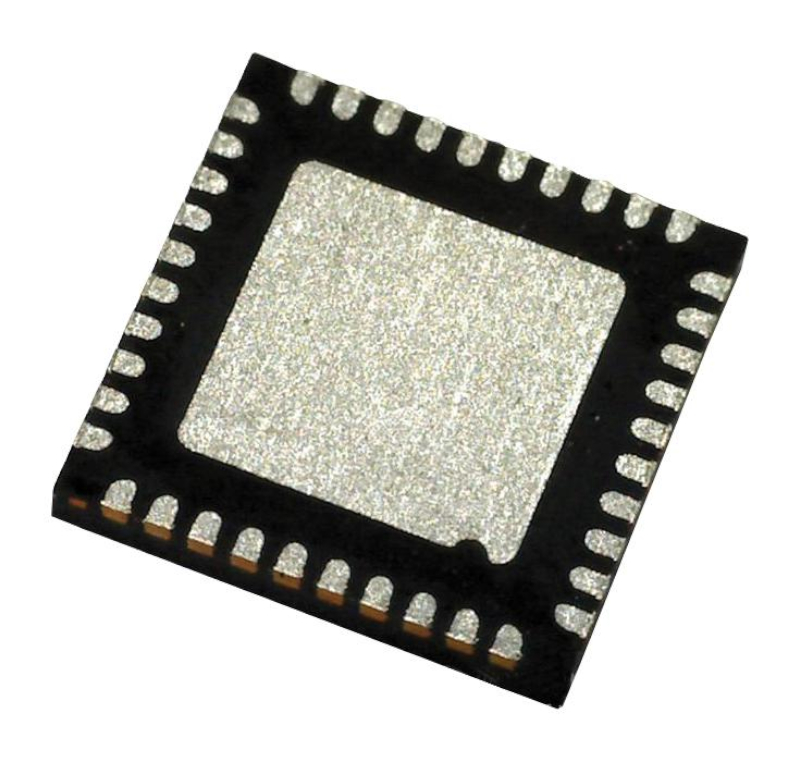

ADE7880ACPZ, Phase Drop Indication, 2.4-3.7V, LFCSP-40, ANALOG DEVICES

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Producător : ANALOG DEVICES

Tip IC : Polyphase Energy Metering IC with Phase Drop Indication

Tensiune alimentare : 2.4 - 3.7V

Carcasă : LFCSP-40

Temperatură de operare : -40...85°C

The ADE7880ACPZ is a Polyphase Multifunction Energy Metering IC with harmonic monitoring. It incorporates second-order sigma-delta (Σ-Δ) analogue-to-digital converters (ADCs), a digital integrator, reference circuitry and all of the signal processing required to perform the total (fundamental and harmonic) active and apparent energy measurements, rms calculations as well as fundamental-only active and reactive energy measurements. In addition, the ADE7880 computes the rms of harmonics on the phase and neutral currents and on the phase voltages, together with the active, reactive and apparent powers and the power factor and harmonic distortion on each harmonic for all phases. Total harmonic distortion (THD) is computed for all currents and voltages. A fixed function digital signal processor (DSP) executes this signal processing. The DSP program is stored in the internal ROM memory.

High accuracy
Compatible with 3-phase, 3-wire or 4-wire (delta or wye) and other 3-phase services
Less than 1% error in harmonic current and voltage rms, harmonic active and reactive powers
Less than 0.1% error in active and fundamental reactive energy over a dynamic range of 5000:1
Less than 0.2% error in active and fundamental reactive energy over a dynamic range of 5000:1
Less than 0.1% error in voltage and current rms over a dynamic range of 1000:1
Battery supply input for missing neutral operation
