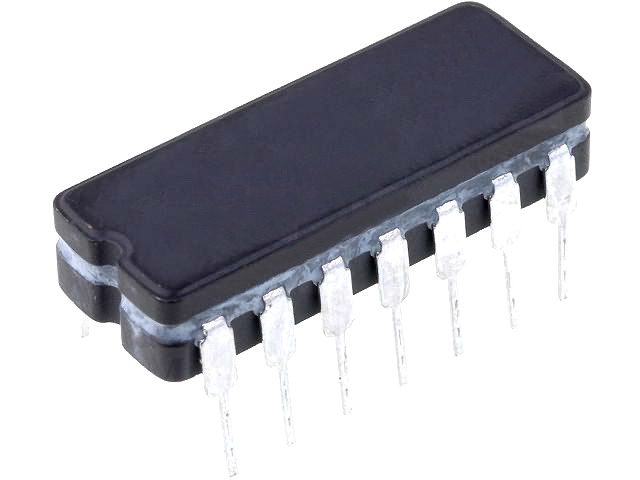

AD594AQ Senzor: de temperatură; CI amplificator pt.termocuplu J; DIL14
Producator: ANALOG DEVICES
Simbol original: AD594AQ
- AMP THERMOCOUPLE TYPE J, DIP14, 594
- IC Output Type: Voltage
- Sensing Accuracy Range: ± 3°C
- Temperature Sensing Range: -55°C to +125°C
- Supply Current: 160µA
- Supply Voltage Range: 5V to 30V
- Sensor Case Style: DIP
- No. of Pins: 14
- Amplifier Type: Thermocouple
- Bandwidth: 15kHz
- Base Number: 594
- IC Generic Number: 594
- Input Offset Voltage Max: 16µV
- Logic Function Number: 594
- No. of Amplifiers: 1
- Operating Temperature Max: 125°C
- Operating Temperature Min: -55°C
- Operating Temperature Range: -55°C to +125°C
- Output Current: 5mA
- Output Type: Voltage
- Output Voltage: 13V
- Output Voltage per °C: 10mV/°C
- Package / Case: DIP
- Sensor / Transducer Type: Temperature
- Supply Voltage + Nom: 5V
- Supply Voltage Max: 15V
- Supply Voltage Min: 5V
- Termination Type: Through Hole
