LIS3MDLTR is a ultra-low-power highperformance 3-axis magnetic sensor. The LIS3MDL has user-selectable full scales of ±4/±8/±12/±16 gauss. The self-test capability allows the user to check the functioning of the sensor in the final application. The device may be configured to generate interrupt signals for magnetic field detection. The LIS3MDL includes an I2C serial bus interface that supports standard and fast mode (100KHz and 400KHz) and SPI serial standard interface. Typical applications include magnetometers and compasses.



    Wide supply voltage: 1.9V to 3.6V

    Independent IO supply (1.8V)

    Continuous and single-conversion modes  16bit data output

    Interrupt generator

    Self-test

    I2C/SPI digital output interface

    Power-down mode/low-power mode

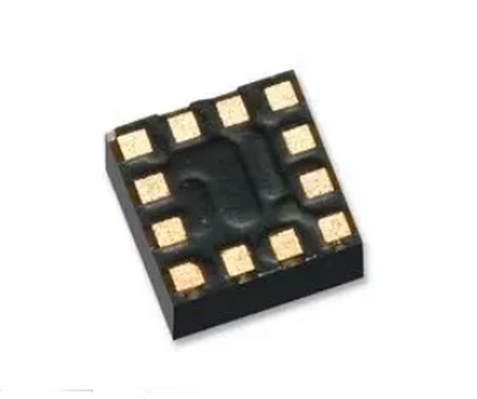

    LGA-12 (2.0x2.0x1mm) package

    Operate over an extended temperature range -40°C to +85°C
