Componente electronice activeDiode redresoare, schottky, putereDiode Schottky de putere60APU04, Dioda, super fast, 60A, 400V, 60ns, VISHAY
Componente electronice activeDiode redresoare, schottky, putereDiode Schottky de putere60APU04, Dioda, super fast, 60A, 400V, 60ns, VISHAY

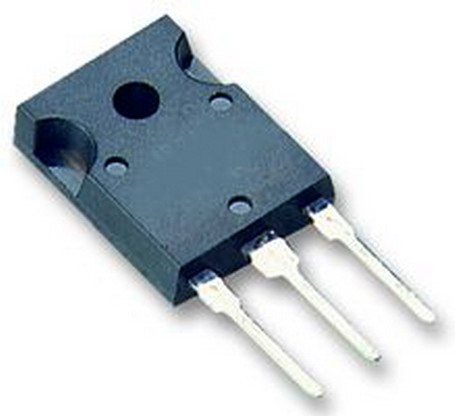

60APU04PBF super fast
Descriere
DIODE, ULTRAFAST, 60A, 400V
Diode Type:Fast Recovery
Voltage Vrrm:400V
Av Current If:60A
Max Voltage Vf:1.25V
Max Reverse RecoveryTime, trr:60ns
Max Current Ifs:600A
Operating Temperature Range:-55C to +175C
Diode Case Style:TO-247AC
No. of Pins:3
Case Style:TO-247AC
Current Ifsm:6000A
Forward Voltage:1.25V
Max Junction Temperature Tj:175C
Termination Type:Through Hole
Typ Reverse Recovery Time, trr:50ns
Max Operating Temperature:127C
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
