VISHAY, 293D475X9035C2TE3
Condensator: cu tantal; 4,7uF; 35VDC; SMD; Carcasă: C; ±10%
Product Attribute Attribute Value Search Similar
Manufacturer: Vishay
Product Category: Tantalum Capacitors - Solid SMD
RoHS: Details
Series: 293D
Capacitance: 4.7 uF
Voltage Rating DC: 35 VDC
Tolerance: 10 %
ESR: 3.1 Ohms

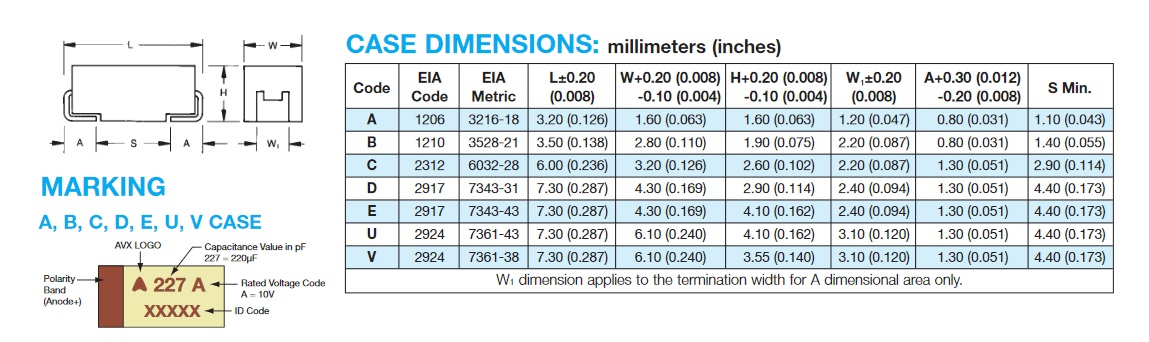

Case Code - in: 2312
Case Code - mm: 6032
Height: 2.8 mm
Mfr Case Code: C Case
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 85 C
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Length: 6 mm
Package/Case: 2412 (6032 metric)
Product: Tantalum Solid Standard Grade - Other Various
Termination Style: SMD/SMT
Type: Molded
Width: 2.5 mm
Brand: Vishay / Sprague
Leakage Current: 1.7 uA
Capacitance - nF: 4700 nF
Dissipation Factor DF: 6
Ripple Current: 0.17 A
