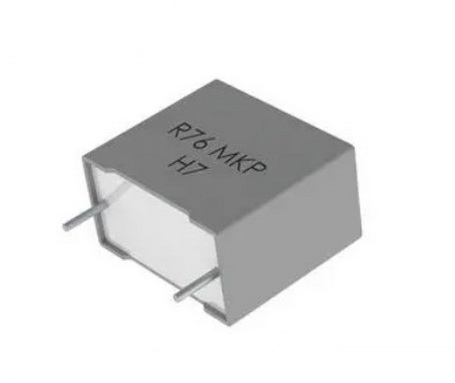

330nF/1600V, condensator, implus, low esr, MKP, RM27.5, KEMET

Denumire Produs: R76TR33304030J, KEMET

COD: 97544

Preț orientativ: 62,82 RON

Descriere
Data Sheet
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Dielectric Type: Double Metallized PP

Capacitance: 0.33µF

Capacitor Case / Package: Radial Box - 2 Pin

Capacitance Tolerance: ± 5%

Typical Applications: High Frequency

Capacitor Mounting: Through ole

Voltage(AC): 650V

Voltage(DC): 1.6kV

Lead Spacing: 27.5mm

Humidity Rating: GRADE II (Test Conditio A)

Operating Temperature Min: -55°C

Operating Temperature Max: 105°C

dv/dt Rating: 2kV/µs

Peak Current: 660A

RMS Current (Irms): 11

ESR: 0.007ohm

Product Length: 32mm

Product Width: 18mm

Output (kvar): -

Height: 33mm

Product Height: 33mm

Product Range: R76 Series

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
