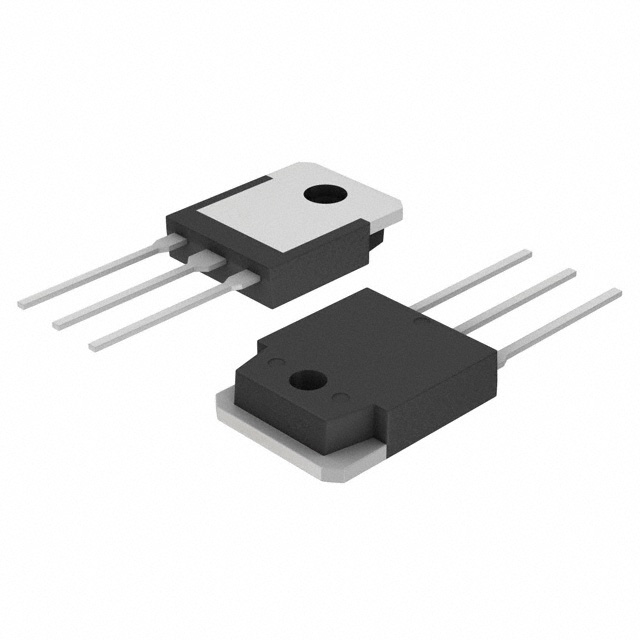

Componente electronice activeTranzistoareTranzistoare bipolare2SC5200N, NPN, 250V, 15A, TO3P, TOSHIBA
Componente electronice activeTranzistoareTranzistoare bipolare2SC5200N, NPN, 250V, 15A, TO3P, TOSHIBA
Manufacturer: ON Semiconductor
Product Category: Transistors Bipolar - BJT
RoHS: RoHS Compliant Details
Brand: ON Semiconductor
Configuration: Single
Transistor Polarity: NPN
Collector- Base Voltage VCBO: 250 V
Collector- Emitter Voltage VCEO Max: 250 V
Emitter- Base Voltage VEBO: 5 V
Maximum DC Collector Current: 15 A
Gain Bandwidth Product fT: 30 MHz
Maximum Operating Temperature: + 150 C
Mounting Style: Through Hole
Package / Case: TO-3P
DC Collector/Base Gain hfe Min: 75
DC Current Gain hFE Max: 75
