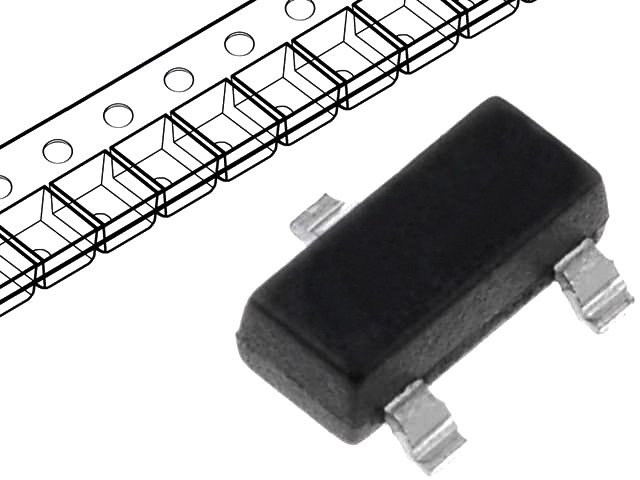

ROHM - RTR040N03TL - MOSFET, N, 30V, 4A
- MOSFET, N, 30V, 4A
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 4A
- Drain Source Voltage Vds: 30V
- On Resistance Rds(on): 66mohm
- Rds(on) Test Voltage Vgs: 4.5V
- Threshold Voltage Vgs Typ: 1.5V
- Power Dissipation Pd: 1W
- Transistor Case Style: TSMT
- No. of Pins: 3
- Capacitance Ciss Typ: 475pF
- Current Id Max: 4A
- Fall Time tf: 19ns
- Package / Case: TSMT3
- Pin Configuration: 1(G),2(S),3(D)
- Power Dissipation Pd: 1W
- Power Dissipation Pd: 1W
- Pulse Current Idm: 16A
- Rise Time: 18ns
- Termination Type: SMD
- Voltage Vds Typ: 30V
- Voltage Vgs Max: 12V
- Voltage Vgs Rds on Measurement: 2.5V
- Voltage Vgs th Max: 1.5V
- Voltage Vgs th Min: 500mV
