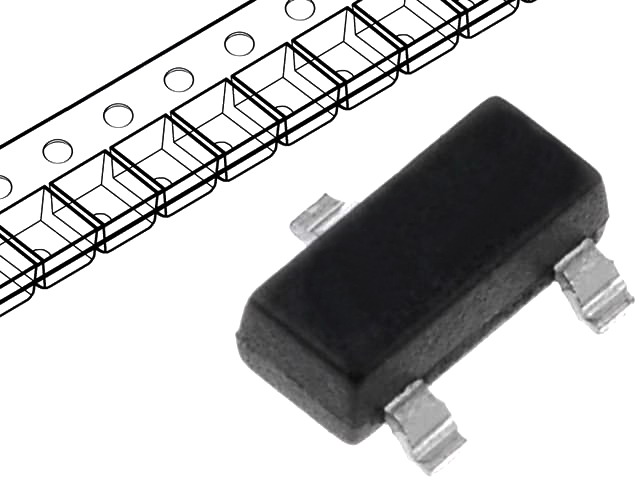

TSC, 2N7002, MOSFET,N CH, 60V,0.3A,SOT23
- MOSFET,N CH, 60V,0.3A,SOT23
- Transistor Polarity: N Channel
- Continuous Drain Current Id: 300mA
- Drain Source Voltage Vds: 60V
- On Resistance Rds(on): 2.8ohm
- Rds(on) Test Voltage Vgs: 10V
- Threshold Voltage Vgs Typ: 2V
- Power Dissipation Pd: 830mW
- Transistor Case Style: SOT-23
- No. of Pins: 3
- Current Id Max: 300mA
- Device Marking: 12%
- Junction Temperature Tj Max: 150°C
- Junction Temperature Tj Min: -65°C
- Junction to Case Thermal Resistance A: 150°C/W
- Package / Case: SOT-23
- Power Dissipation Pd: 830mW
- Power Dissipation Pd: 830mW
- Pulse Current Idm: 1.2A
- Storage Temperature Max: 150°C
- Storage Temperature Min: -65°C
- Termination Type: SMD
- Voltage Vds Typ: 60V
- Voltage Vgs Max: 30V
- Voltage Vgs Rds on Measurement: 10V
- Voltage Vgs th Max: 2.5V
