2N6405 Tiristor; 800V; 16A; 40mA; TO220AB
Producator: ON SEMICONDUCTOR Simbol original: 2N6405G
THYRISTOR, 16A, 800V, TO-220
Peak Repetitive Off-State Voltage, Vdrm: 800V
Gate Trigger Current Max, Igt: 30mA
Current It av: 10A
On State RMS Current IT(rms): 16A

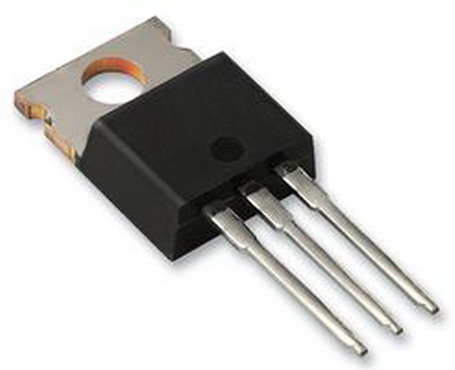

Thyristor Case Style: TO-220AB
No. of Pins: 3
Peak Non Rep Surge Current Itsm 50Hz: 160A
Holding Current Max Ih: 40mA
Gate Trigger Voltage Max Vgt: 1.5V
Operating Temperature Max: 125°C
Current Itsm: 160A
Device Marking: 2N6405
Operating Temperature Min: -40°C
Operating Temperature Range: -40°C to +125°C
Repetitive Reverse Voltage Vrrm Max: 800V
Termination Type: Through Hole
Thyristor Case: TO-220AB
Thyristor Type: Thyristo
