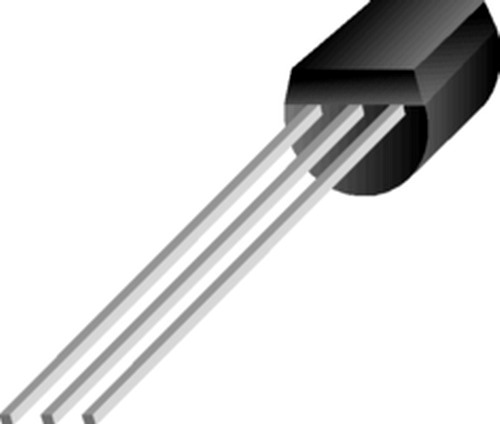

2N3904 Tranzistor NPN 60V 0.2A 0,36W B=100-400 TO92 RoHS
Inlocuire pentru: 2N2368, 2N2483, 2N2484, 2N3903, 2N4072, 2N4123, 2N5210, 2N735
- TRANSISTOR, NPN, 40V, 200MA, TO-92
- Transistor Polarity: NPN
- Collector Emitter Voltage V(br)ceo: 40V
- Power Dissipation Pd: 625mW
- DC Collector Current: 200mA
- DC Current Gain hFE: 100
- Operating Temperature Range: -55°C to +150°C
- Transistor Case Style: TO-92
- No. of Pins: 3
- Collector Emitter Voltage Vces: 200mV
- Continuous Collector Current Ic Max: 200mA
- Current Ic @ Vce Sat: 10mA
- Current Ic Continuous a Max: 200mA
- Current Ic Fall Time Measurement: 10mA
- Current Ic hFE: 10mA
- Fall Time @ Ic: 250ns
- Full Power Rating Temperature: 25°C
- Gain Bandwidth ft Min: 300MHz
- Gain Bandwidth ft Typ: 300MHz
- Hfe Min: 100
- No. of Transistors: 1
- Package / Case: TO-92
- Pin Configuration: b
- Power Dissipation Ptot Max: 500mW
- Voltage Vcbo: 60V
