Furnizor:  BHC COMPONENTS

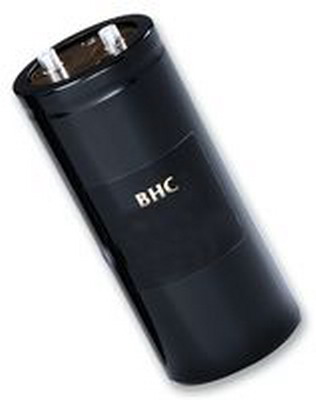

ALS30A222MF400

RoHS :  Da

Descriere
CAPACITOR, 2200UF, 400V
Capacitor Dielectric Type:Aluminium Electrolytic
Capacitance:2200µF
Capacitance Tolerance:± 20%
Voltage Rating:400V dc
Effective Series Resistance:62mohm
Series:ALS30
Life Time @ Temperature:11000h @ 85C
Height:105mm
Outside Diameter:66mm
Capacitor Case Style:Radial Leaded
Mounting Type:Panel
Lead Spacing:28.5mm
Operating Temperature Range:-40C to +85C
SVHC 2:Bis (2-ethyl(hexyl)phthalate) (DEHP)
AC Ripple Current:11.2A
AC Ripple Current @ 100Hz:11.2A
AC Ripple Current @ 10kHz:17.4A
Application:General Purpose
Body Diameter:66mm
Case Style:Radial
Climatic Category:40/085/56
ESR Frequency:100Hz
ESR Temperature:20C
External Length / Height:105mm
Leakage Current:5280µA
Max Operating Temperature:85C
Min Temperature Operating:-40C
Operating Life Temperature:85C
Operating Lifetime:11000h
Ripple Current Frequency:100Hz
Ripple Current Temperature:85C
Terminal Type:M5

Termination Type:Screw
Tolerance, +:20%
Tolerance, -:20%
