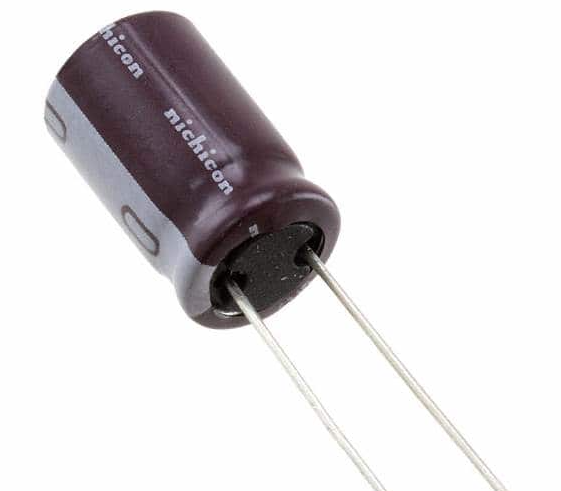

2.2uF/400V, condensator electrolitic, 10x17mm, RM5, NICHICON

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

Capacitance 2.2 µF

Tolerance ±20%

Voltage - Rated 400 V

ESR (Equivalent Series Resistance)

Lifetime @ Temp. 2000 Hrs @ 105°C

Operating Temperature -40°C ~ 105°C

Polarization Polar

Applications General Purpose

Ripple Current @ Low Frequency 27 mA @ 120 Hz

Ripple Current @ High Frequency 43.2 mA @ 10 kHz

Lead Spacing 0.197" (5.00mm)

Size / Dimension 0.394" Dia (10.00mm)

Height - Seated (Max) 0.689" (17.50mm)

Surface Mount Land Size -

Mounting Type Through Hole

Package / Case Radial, Can

ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.

PRODUSE ASOCIATE

Norul de tag-uri

Afisor LCD Grafic Ampermetru Analogic Amplificator Audio Arduino Balun Buton Panou Buzzer Card reader Comutator cu came Contactor Contactor el-mec Convertizor trifazat Cutie Decadica Datalogger DDR2 Drone extensions Invertor Invertor trifazat 5.5kW Invertor vectorial trifazat IoT Jumper Wire Microchip ARM Motor Driver Multimetru Digital Numarator impulsuri Placa dezvoltare Proxi Smart Plug Raspberry Pi 3 Regulator de proces Regulator tensiune Relee comutare faze Relee supraveghere faze Robotica Sensor DFROBOT Sensor OKYSTAR Sensor Seeed Set sigurante shield SSR Suport baterii MR18650 3.7V KEYS1049 Sursa alimentare led IP67 Sursa laborator Termostat Termostat 2 sensori Timer Timer scara Timer scolar Variator tensiune trifazat Voltage Regulator

2.2uF/400V, condensator electrolitic, 10x17mm, RM5, NICHICON

Denumire Produs: UPS2G2R2MPD, NICHICON
