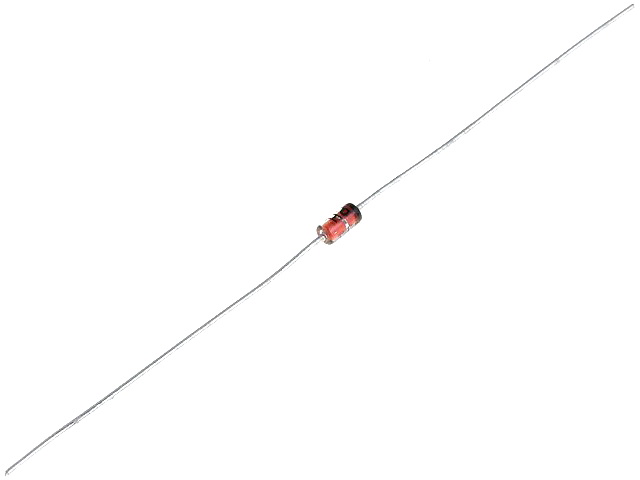

Poza 1N914 mica

1N914, dioda ultra fast, 75V, 0.2A, FAIRCHILD SEMICONDUCTOR

Denumire Produs: 1N914, FAIRCHILD SEMICONDUCTOR

COD: 10028


Preț: 0,75 RON

(Pretul include TVA)
In stoc

Discounturile noastre de cantitate:

Cantitate  25+
Preț  0,20 RON

Cantitatea minimă pentru "1N914, dioda ultra fast, 75V, 0.2A, FAIRCHILD SEMICONDUCTOR" este 2.



FAIRCHILD SEMICONDUCTOR - 1N914 - DIODE, SMALL SIGNAL, DO-35

  •  DIODE, SMALL SIGNAL, DO-35
  • Diode Type: Small Signal
  • Forward Current If(AV): 200mA
  • Repetitive Reverse Voltage Vrrm Max: 75V
  • Forward Voltage VF Max: 1V
  • Reverse Recovery Time trr Max: 4ns
  • Forward Surge Current Ifsm Max: 1A
  • Diode Case Style: DO-35
  • No. of Pins: 2
  • Alternate Case Style: SOD-27
  • Application Code: High Frequency Switching
  • Current If @ Vf: 10mA
  • Current Ifsm: 1A
  • Device Marking: 1N914
  • Forward Current If Max: 10mA
  • Forward Voltage: 1V
  • Junction Temperature Tj Max: 175°C
  • Package / Case: DO-35
  • Peak Forward Current: 300mA
  • Power Dissipation Ptot Max: 500mW
  • Reverse Recovery Time trr Typ: 4ns
  • Termination Type: Axial Leaded
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
