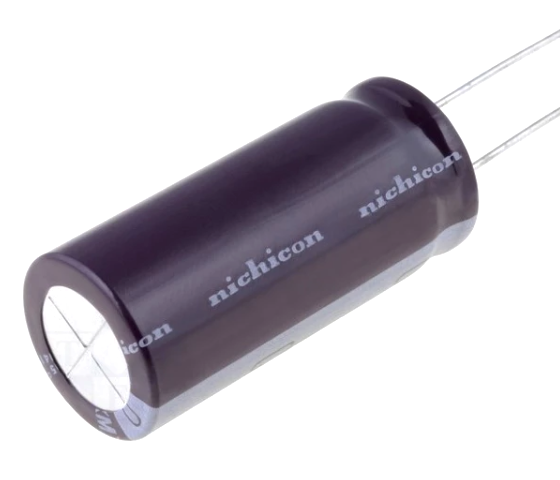

Componente electronice pasiveCondensatori electrolitic, smd, ceramici, multistrat, low esr, bipolar, MKP, MKTCondensatori electroliticiCondensatori electrolitici LOW ESR1000uF/80V, electrolitic, Low Esr, 105C, 18x42mm, 5000h, NICHICON
Componente electronice pasiveCondensatori electrolitic, smd, ceramici, multistrat, low esr, bipolar, MKP, MKTCondensatori electroliticiCondensatori electrolitici LOW ESR1000uF/80V, electrolitic, Low Esr, 105C, 18x42mm, 5000h, NICHICON
Mfr Nichicon
Series UP
Package BulK
Product Status Not For Ne Designs
Capacitance 1000 µF
Tolerance ±20 %
Voltage - Rated 80 V
ESR (Equivalent Series Resistance)
Lifetime @ Temp. 5000 Hrs @ 105°
Operating Temperature -55°C ~ 10°C
Polarization Polar
Ripple Current @ Low Frequency 2.05 A @ 120 H
Ripple Current @ High Frequency 2.37 A @ 0 kHz
Impedance 44 mOhm
Lead Spacing 0.295" (7.50mm
Size / Dimension 0.709" Dia (18.00mm
Height - Seated (Max) 1.654" (42.00mm
Surface Mount Land Size
Mounting Type Through Hol
Package / Case Radial, Can
