Manufacturer:Microchip
Product Category:Gate Drivers
RoHS: Details
Product:MOSFET Gate Drivers
Type:Low Side
Mounting Style:SMD/SMT

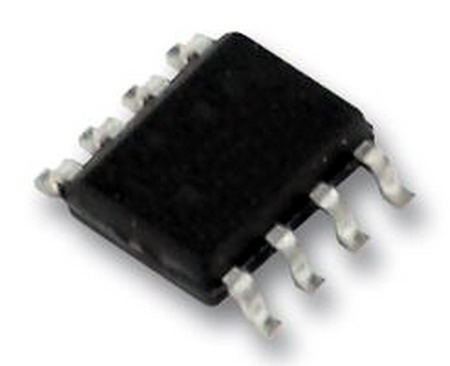

Package/Case:SOIC-8
Number of Drivers:1 Driver
Number of Outputs:1 Output
Output Current:6 A
Rise Time:35 ns
Fall Time:35 ns
Supply Voltage - Min:4.5 V
Supply Voltage - Max:18 V
Operating Supply Current:3 mA
Pd - Power Dissipation:470 mW
Minimum Operating Temperature:- 40 C
Maximum Operating Temperature:+ 85 C
Series:TC4420
Packaging:Tube
Output Voltage:0.025 V
Technology:Si
Brand:Microchip Technology
Logic Type:CMOS, TTL
Maximum Turn-Off Delay Time:75 ns
Maximum Turn-On Delay Time:75 ns
Moisture Sensitive:Yes
Operating Supply Voltage:4.5 V to 18 V
Product Type:Gate Drivers
