Furnizor: DIODES INC.

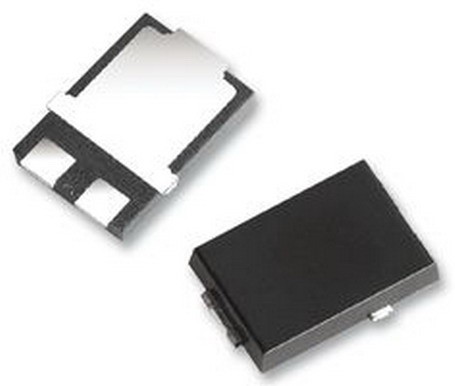

PDU620-13
RoHS : Da
Descriere
RECTIFIER ULTRAFAST POWERDI 5
Diode Type:Ultrafast Recovery
Repetitive Reverse Voltage Vrrm Max:200V
Forward Current If(AV):6A
Forward Voltage VF Max:940mV
Reverse Recovery Time trr Max:25ns
Forward Surge Current Ifsm Max:150A
Operating Temperature Range:-65C to +175C
Diode Case Style:PowerDI 5
No. of Pins:2
Current Ifsm:150A
Junction Temperature Tj Max:175C
Package / Case:PowerDI 5
Reverse Recovery Time trr Typ:25ns
Termination Type:SMD
