Intrerupator basculant, ON-ON, 10A, 6 pini, DPDT, orificiu montare 12.2mm, TS-18

Denumire Produs: TS-18

COD: 42949

Preț: 12,90 RON

(Prețul include TVA)

In stoc

Adaugati la lista de favorite

Cantitate:

Descriere
Recenzii
Etichete
Trimiteti unui prieten
Am găsit o greşeală

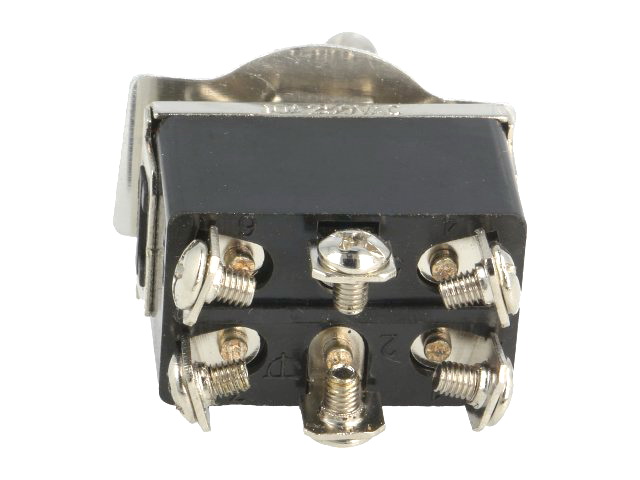

Intrerupator basculant DPDT ON-ON 10A TS-18 / 6 pini

Tip întrerupător basculant

Configuraţie pini DPDT

Mod comutare ON-ON

Sarcină admisibilă contacte AC

(la sarcina rezistivă) 10 A / 250 VAC

Temperatura de lucru -55...65°C

SPST : single pole single throw

SPDT : single pole double throw
DPST : double pole single throw

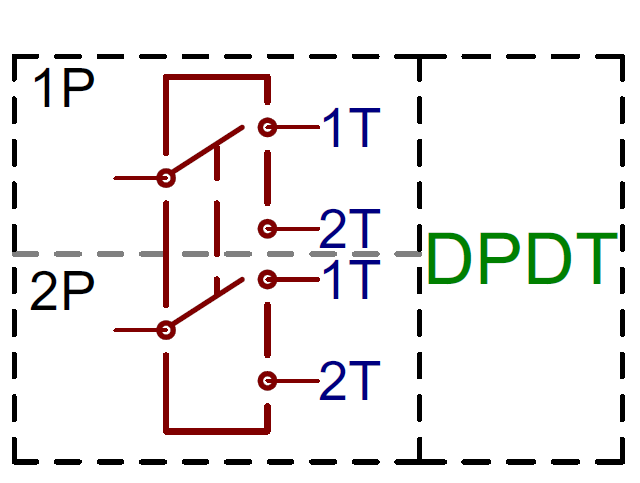

DPDT : double pole double throw

For multipole switches:
3P : 3 pole
3PST means 3 pole single throw
4P : 4 pole
4PDT means 4 pole double throw

Contacts position:
NO : normally open contacts are operated to "make"
NC : normally closed contacts are operated to "break"

For switches with 3 stable positions:
SP3T : single pole ON-OFF-ON
DP3T : double pole ON-OFF-ON
Momentary action: the state of the switch will change only whilst the operating force is applied. When released the switch will return to its original state
