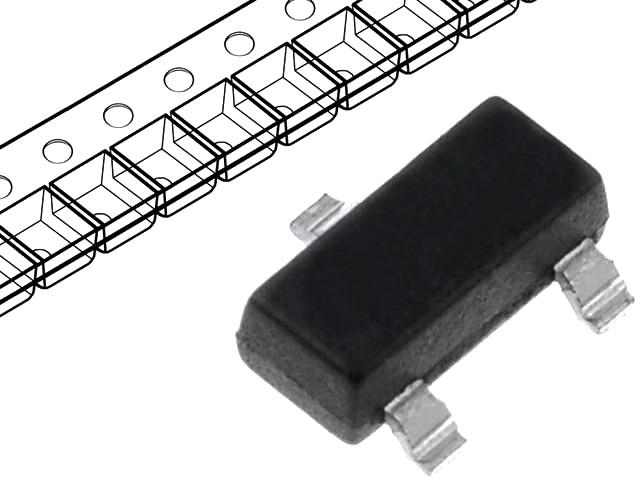

STMICROELECTRONICS - BAT54SFILM - DIODE, SCHOTTKY, DUAL
- DIODE, SCHOTTKY, DUAL
- Diode Type: Schottky
- Diode Configuration: Dual Series
- Repetitive Reverse Voltage Vrrm Max: 40V
- Forward Current If(AV): 300mA
- Forward Voltage VF Max: 400mV
- Reverse Recovery Time trr Max: 5ns
- Forward Surge Current Ifsm Max: 1A
- Operating Temperature Range: -40°C to +150°C
- Diode Case Style: SOT-23
- No. of Pins: 3
- Common Connection: Anode / Cathode
- Current If @ Vf: 10mA
- Current Ifsm: 1A
- External Depth: 2.5mm
- External Length / Height: 1.12mm
- External Width: 3.05mm
- Forward Voltage: 400mV
- Junction Temperature Tj Max: 150°C
- Package / Case: SOT-23
- SMD Marking: D88
- Termination Type: SMD
