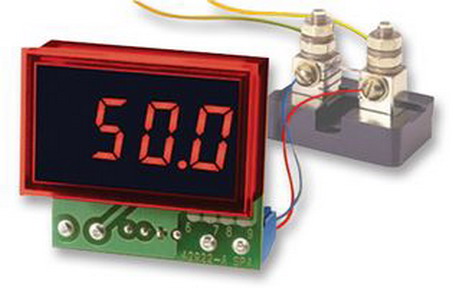

• DPM, LED, RED, DC AMMETER
• No. of Digits / Alpha: 3-1/2
• Meter Function: DC Amps
• Meter Range: 0A to 2A / 0A to 20A / 0A to 200A / 0A to 2000A
• Digit Height: 9.4mm
• Panel Cutout Height: 21.29mm
• Panel Cutout Width: 33.93mm
• Supply Voltage Range: 8V DC to 36V DC
• Power Consumption: 1W
• Operating Temperature Range: 0°C to +60°C
• Accuracy %: 0.15%
• Bezel Height: 22.4mm
• Bezel Width: 35mm
• Character Height: 9.4mm
• Display Area Depth: 12.1mm
• Display Technology: LED
• External Depth: 25.4mm
• External Length / Height: 20.3mm
• External Width: 33mm
• Full Scale Reading: 1.999A/19.99A/199.9A/1999 with 50mV Shunt
• Humidity: 85%
• Input Current: 25mA
• Input Impedance: 1kohm
• LED Colour: Red
• Operating Temperature Max: 60°C
• Operating Temperature Min: 0°C
• Sample Rate: 2.5 reading per second
• Supply Current: 150mA
• Supply Voltage DC Max: 36VDC
• Supply Voltage DC Min: 8VDC

NECESITA SHUNT : SHUNTURI
