Furnizor: TOSHIBA

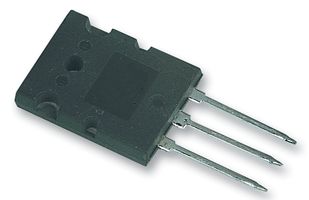

2SC5200-O
RoHS : Da
Descriere
TRANSISTOR, NPN, 2-21F1A
Transistor Polarity:NPN
Collector Emitter Voltage V(br)ceo:230V
Gain Bandwidth ft Typ:30MHz
Power Dissipation Pd:150W
DC Collector Current:15A
Transistor Case Style:TO-264
No. of Pins:3
Av Current Ic:15A
Collector Emitter Voltage Vces:3V
Continuous Collector Current Ic Max:15A
Current Ib:1.5A
Current Ic Continuous a Max:15A
Current Ic hFE:1A
DC Current Gain hFE:60
Device Marking:2SC5200
Full Power Rating Temperature:25C
Hfe Min:55
Junction Temperature Tj Max:150C
No. of Transistors:1
Package / Case:TO-3PL
Power Dissipation Pd:150W
Power Dissipation Ptot Max:150W
Termination Type:Through Hole
Transistor Type:
Voltage Vcbo:230V
ATENTIE: Imaginile produselor au numai titlu indicativ si pot diferi de imaginea reala a produselor. Acest lucru nu schimba caracteristicile lor de baza.
