Furnizor:  MICROCHIP

24LC256-I/SM

 Alternativa pentru: 24c256

 RoHS :   Da
Descriere

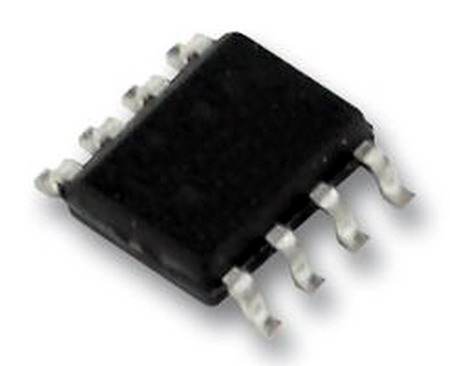

EEPROM SERIAL 256K, 24LC256, SOIJ8
 Memory Size:256Kbit
 Memory Configuration:32K x 8
 Interface Type:I2C, Serial, 2-Wire
 Clock Frequency:2MHz
 Supply Voltage Range:2.5V to 5.5V
 Memory Case Style:SOJ
 No. of Pins:8
 Operating Temperature Range:-40C to +85C
 SVHC:No SVHC (20-Jun-2011)
 Base Number:24
 DC Supply Voltage Tolerance +:10%
 DC Supply Voltage Tolerance -:10%
 Device Marking:24LC256
 Frequency:400kHz
 IC Generic Number:24LC256
 Interface:I2C
 Interface Type:Serial, I2C
 Logic Function Number:24LC256
 Memory Configuration:32K x 8
 Memory Size:256Kbit
 Memory Type:EEPROM
 Memory Voltage Vcc:2.5V
 Operating Temperature Max:+85C
 Operating Temperature Min:-40C
 Package / Case:SOIJ
 Supply Voltage Max:5.5V
 Supply Voltage Min:2.5V
 Termination Type:SMD
 Vcc Tolerance +:10%
 Vcc Tolerance -:10%
 Voltage Vcc:2.5V
